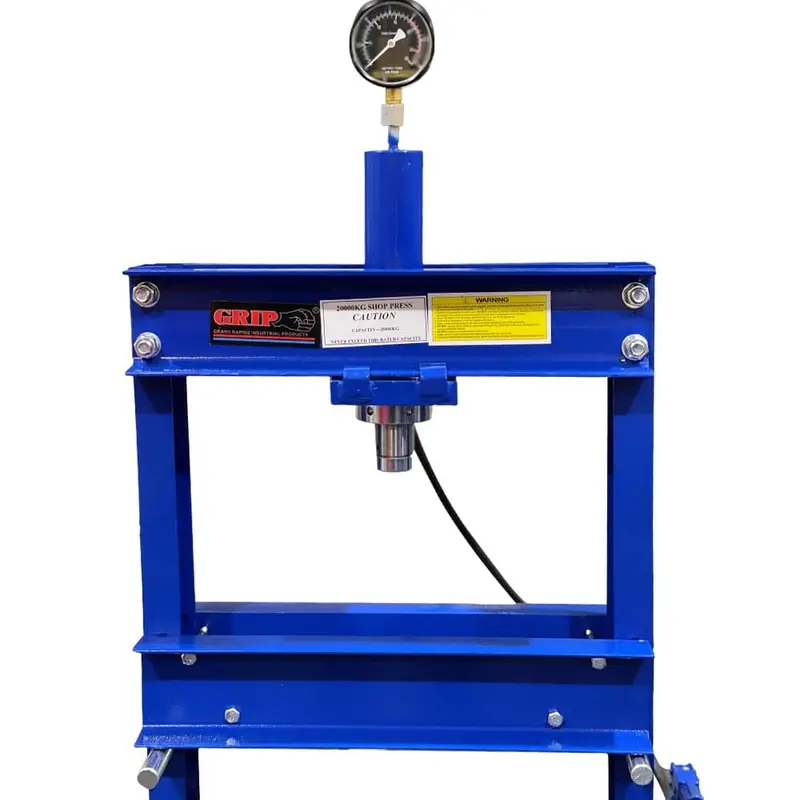

Grip 50058 20-Ton H-Frame Hydraulic Shop Press With Pressure Gauge

Description

For the fast efficient removal and installation of bearings, gears, bushings, pulleys, ball joints etc. in the workshop environment.

Features:

• Compact freestanding high strength H frame steel construction.
• Height adjustable bed.
• Heavy duty steel channels.
• 20 tonne hydraulic left & right slide ram.
• Includes 2 X high strength steel pushing plates.

Specifications:

• Pressing Capacity: 20 Ton
• Hydraulic Ram Operation: Manual Hand Lever
• Sliding Ram Left & Right : Yes
• Width between Front Posts: 510mm
• Width between Side Posts :100mm
• Working Range: 0-980mm
• Piston Ram Stroke: 180mm
• Ram Diameter: Ø48mm
• Floor Space (W x D x H): 900 x 800 x 1800mm
• Shipping Dimensions (L x W x H): 1560 x 260 x 240
• Nett Weight: 100kg
