Description
Features:
- Hardened and precision ground V-way bed.
- MT4 spindle gets more capacity.
- Gearbox is easy operating
- T-slotted cross slide.
- Slideways have adjustable gibs.
- Right- and left-hand thread cutting is available.

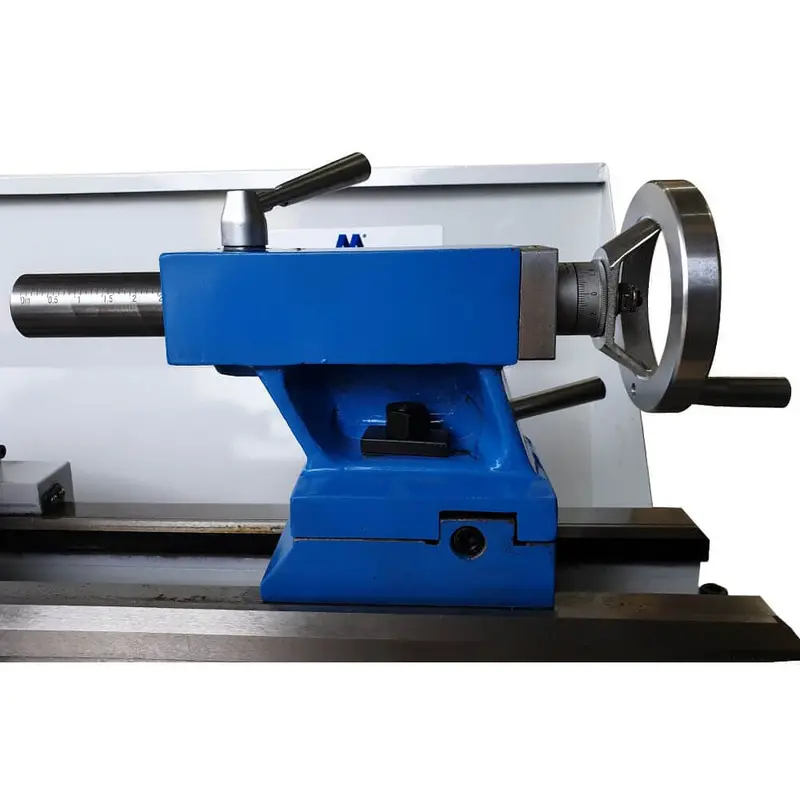

- Tailstock can be offset allowing tapers to turn
- 6 steps spindle speed with the range 125-200mm
Specifications:
- Distance between centres: 550mm
- Swing over bed: 250mm
- Swing over cross slide: 145mm
- Width of bed: 135mm
- Taper of spindle bore: MT4
- Spindle bore: 26mm
- Number of spindle speeds: 6/variable speed
- Range of spindle speeds: 125-2000rpm
- Range of longitudinal feeds: 0.07-0.20mm/r
- Range of inch threads: 8-56T.P.I
- Range of metric threads: 0.4-3.5mm
- Top Slide Travel: 50mm
- Cross slide travel: 115mm
- Tailstock Quill Travel: 70mm
- Taper of tailstock quill: MT2
- Motor: 550W
- Packing size: 1150 x 560 x 570mm
- Net Weight: 120kg
