Description
- Lifts 3000kg at 1200mm jib extension
- Heavy duty castors
- Pump access from side
- Ideal for heavy commercial, industrial and workshop use

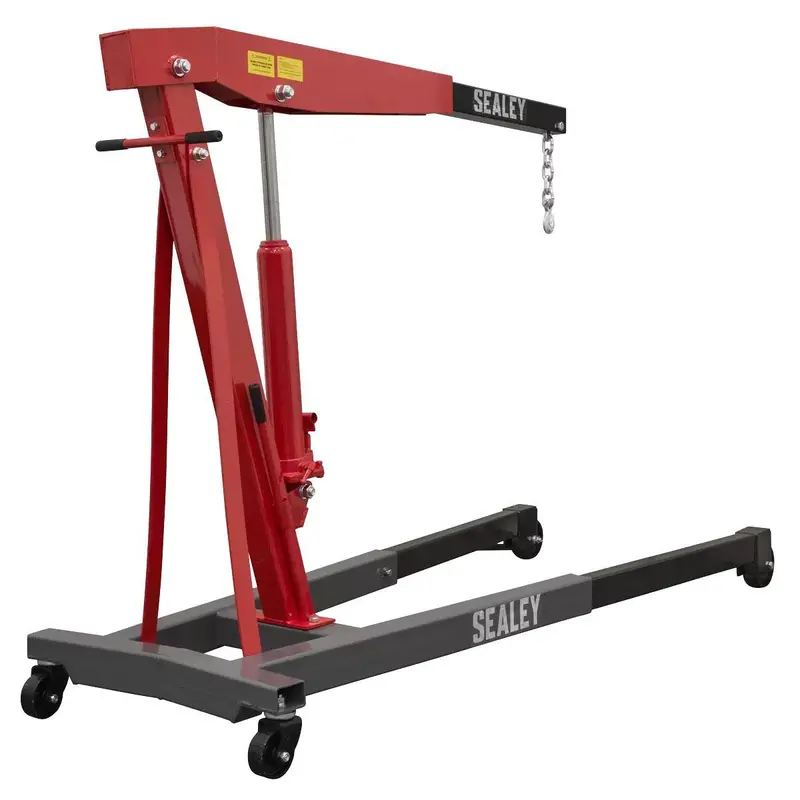

Sealey PH30 3tonne Fixed Frame Engine Crane with Extendable Legs
Features:
Lifts 3000kg at 1200mm jib extension.
Heavy-duty castors.
Perfect for heavy commercial, industrial and workshop use.
Extendable heavy-duty legs for improved stability, particularly when operating at maximum jib extensions.
Pump access from side for safe handling of heavy loads.
Delivered in knock-down form for reduced freight cost.
Some self-assembly required.
Specification:
Barcode: 5054630451256
Model No.: PH30
Height Jib Down: 1610mm
Height of Frame: 195mm
Length Legs Extended: 1940mm
Length of Jib Position 1: 1200mm
Length of Jib Position 2: 1400mm
Length of Jib Position 3: 1610mm
Length of Jib Position 4: 1820mm
Length: 1940mm
Lifting Capacity in Position 1: 3000kg
Lifting Capacity in Position 2: 2000kg
Lifting Capacity in Position 3: 1500kg
Lifting Capacity in Position 4: 1000kg
Max. Lift Ht at Jib Position 1: 1880mm
Max. Lift Ht at Jib Position 2: 1970mm
Max. Lift Ht at Jib Position 3: 2010mm
Max. Lift Ht at Jib Position 4: 2220mm
Note: Legs Extended
Rear Width: 780mm
Width Front Frame: 855mm
Width Inside Front Frame: 700mm
Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.
**images for illustrative purposes only – please refer to description and specification for full details of product**
